Flitch Plate Beams

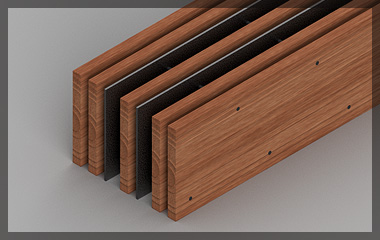

Rio Truss LP offers LVL -Flitch Plate Beams to carry a larger load than a solid wood beam with the same depth and span. A flitch-plate beam is a composite beam--a plate of steel sandwiched between two wood joists, (this can be extended by utilizing multiple layers of timber and steel plating to accomplish the needed result).


Roof Trusses

As strong as steel I-beam for a lower cost.

Usually, they are held together with specifically designed screws or bolts arranged in a specified pattern on the face of the beam, connecting all layers into a single unified beam.

If a building is limited in the depth of the girders and joists, Flitch Plate Beams are used because a comparatively shallow flitch-plate girder could carry the same load as a solid wood beam of much greater depth. It provides most of the strength of a steel I-beam at a lower cost and allowed attachment of other structural members using ordinary wood-framing methods while creating structural integrity.



Gallery

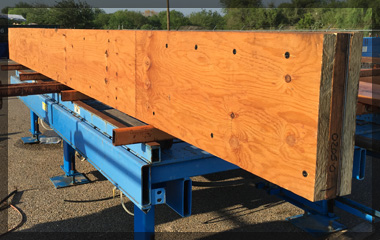

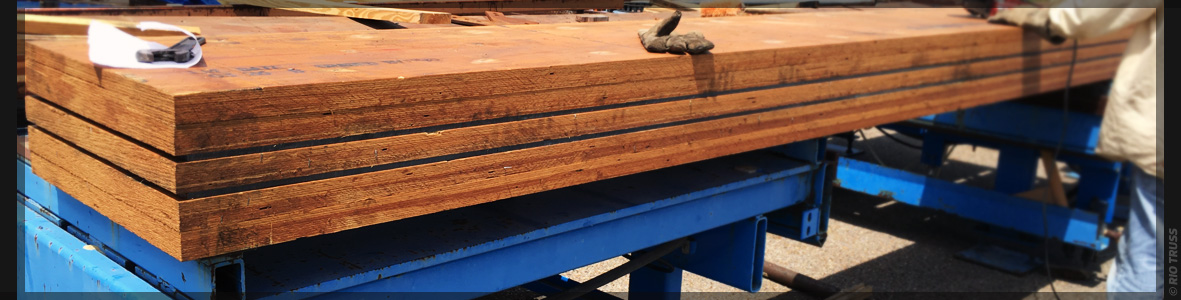

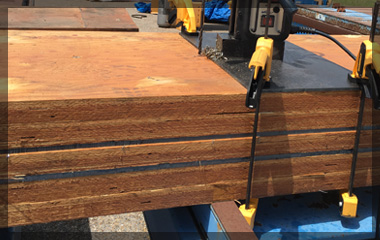

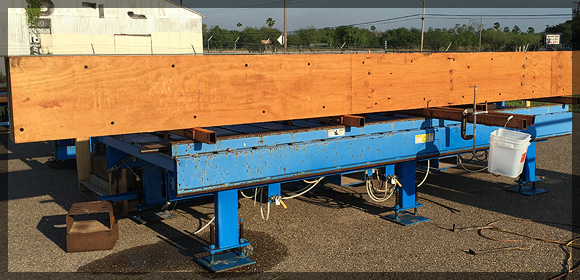

Some samples of our recent work, manufactured in our production plant in McAllen, TX.

Call today for a free consultation!
